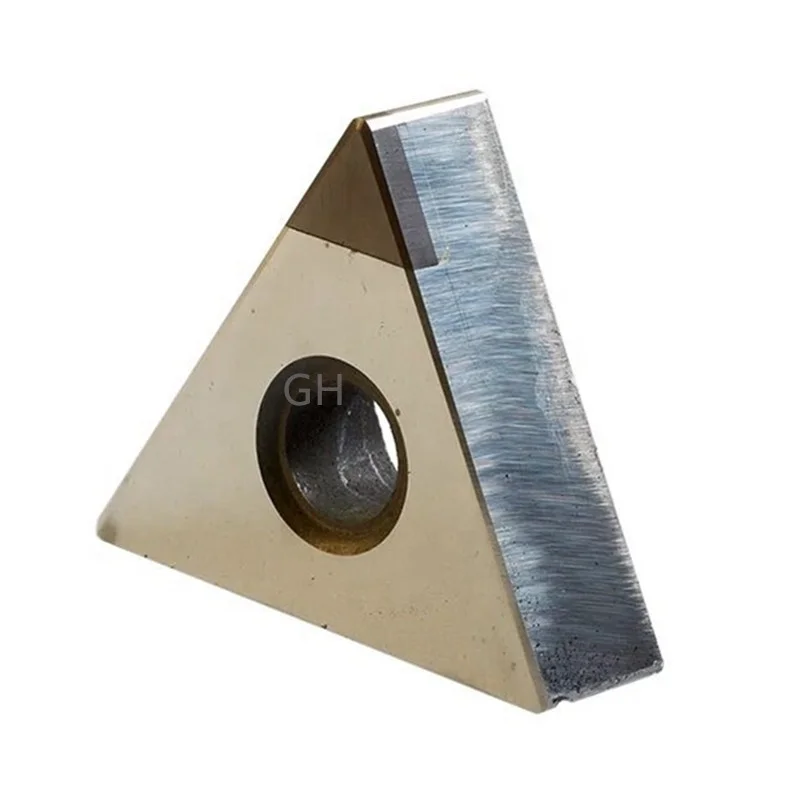

Hot Sale CNC Diamond PCD PCBN tip carbide insert CBN Insert TNGA TNMG160404 TCGT 110204 TCMT TCGW for turning tools

Name: Hot Sale CNC Diamond PCD PCBN tip carbide insert CBN Insert TNGA TNMG160404 TCGT 110204 TCMT TCGW for turning tools
Brand: Cnctoolsfolder.com
SKU: 5475952018259_407982610
Price: 12340.0 PKR
Availability: InStock

Regular price Rs.12,340.00 PKR

Regular price ~~Rs.0.00 PKR~~ Sale price Rs.12,340.00 PKR

Unit price / per

Sale Sold out

Type TNMG160408Variant sold out or unavailable TNMG160412Variant sold out or unavailable TNMG160404Variant sold out or unavailable TNMG160402Variant sold out or unavailable TCGT16T304Variant sold out or unavailable TCGT16T308Variant sold out or unavailable TCGT16T302Variant sold out or unavailable TCGT110204Variant sold out or unavailable TNGA160404Variant sold out or unavailable TCGT110202Variant sold out or unavailable TNGA160412Variant sold out or unavailable TNGA160408Variant sold out or unavailable

Material CBN one tip for cast ironVariant sold out or unavailable DIAMOND PCDVariant sold out or unavailable CBN one tip for hardened steelVariant sold out or unavailable

Product variants

Quantity (0 in cart)

Hot Sale CNC Diamond PCD PCBN tip carbide insert CBN Insert TNGA TNMG160404 TCGT 110204 TCMT TCGW for turning tools

Product Description

l PCD

PCD(Polycrystalline Diamond)is a synthesized, extremely tough, intergroup mass of randomly orientated diamond particles in a metal matrix. It is produced by sintering together selected diamond particles at high pressure and temperature.

Features:

--All our PCD PCBN blanks are imported from world famous companies including Element Six (DeBeers, E6), DI (GE), ILJIN, SMITH, SUMITOMO and TOMEI.

--The PCD CBN cutting tools have the advantages of high abrasive resistance, processing precision, good thermal conductivity and long service life.

---With sharp cutting edge , sharp, high precision,

---The body uses high quality tungsten carbide or steel.

-- Machines imported from UK, Germany, Japan

Application:

PCD may be cost effectively employed to machine the following broad range of materials:

Non-ferrous metals and alloys including, aluminum, copper, bronze, brass, green tungsten carbide, precious metals and MMC's.
Non-metallic materials including, ceramics, reinforced plastics, hard rubber, chipboard, MDF's and other fibreboards, etc.

TCMT PCD .jpg TCGT CBN.jpg

TNGA 167_.jpg

pcd cbn inserts spec

SPEC-PCD CBN INSERT_1 PCD INSERTS

pcd cbn insert processing

pcbn cbn

TECHNICAL DATA.png

Materials to be Processed		Products
Nonferrous Metal	Aluminum, Aluminum Alloy	Piston, cylinder, wheel hub, transmission case, pump body, admission pipe and various shell parts for cars and motorcycles.
		Tank body, shell and compressor parts for airplanes and electro mechanical products.
		Precision machinery parts for cameras, duplicators and metrical instruments.
		Parts for pump body and oil press.
	Copper, Copper Alloy	Axle, bearing bush, bearing and pump body for internal combustion engines and ships.
		Parts for various instruments, dynamo commutators, printed boards and electronic apparatus.
		Bearing, bearing bush, valve and shell body.
	Tungsten Carbide	Sinter such as valve seat and cylinder, and semi-finished sinter.
	Others	Various nonferrous metal parts such as magnesium and zinc.
Nonmetal	Wood	Hardwood, artificial board, artificial abrasion resistant fiberboard.
	Reinforced Plastic	Glass fiber and carbon fiber reinforced plastic.
	Rubber	Roller for paper and rubber ring.
	Graphite	Carbon rod.
	Ceramic	Sinter such as sealing ring and plunger piston, and semi-finished sinter.

How to order?

In order to supply the product you require we would need to have the following information:

1. The insert & tools designation - ISO code or drawing.
2. The type of abrasive (Diamond or CBN).
3. The material to be machined. As there any different series of PCD/PCBN is used for processing different targets.
4. Length of required PCD/PCBN cutting edge.
5. Any special features eg: Top rake or radius different to the code etc.

We hope to receive your drawing of indexable type insert and tools.

Our Services:

-- Reply the inquiries within 24 hours

-- Drawings after payment/according to the order

--Shipping Time: 6-15 working days

--FOB/EXW/CFR

-- Quality Control: Ensure 100% qualified

--MOQ 2pc,to test or according the order

--OEM /ODM/Customized design is available

--Catalog and samples could be supplied if requirement.
