ZC2501 ZC2502 : suitable for low speed machining of steel part
ZC2511 ZC2512 : suitable for high speed machining of steel part
ZP1521 : suitable for high speed machining of stainless steel, steel, cast iron
Cnctoolsfolder.com
Maifix ERAG Threading Insert 55 and 60 Degrees Carbide Thread Lathe Cutting Tool CNC Thread Lathe Tool
Maifix ERAG Threading Insert 55 and 60 Degrees Carbide Thread Lathe Cutting Tool CNC Thread Lathe Tool
Regular price
Rs.15,292.39 PKR
Regular price
Rs.0.00 PKR
Sale price
Rs.15,292.39 PKR
Unit price
per
Couldn't load pickup availability
Product Description
Product Description
Maifix is the professional machine tool manufacturer in China since 2009.
The main products include turning tools, boring tools, threading tools, grooving tools, milling cutter and end mill.
|
Maifix 16ER AG60 A60 ISO Stainless Steel Processing Tungsten Carbide Cutter CNC Threaded Turning Tools Threading Inserts
|
||||||
|
Item No.
|
Thread Pitch (M:m)
|
L (mm)
|
Workable Tool
|
|||
|
16ER
|
0.5-3.0
|
16
|
SER
|
|||

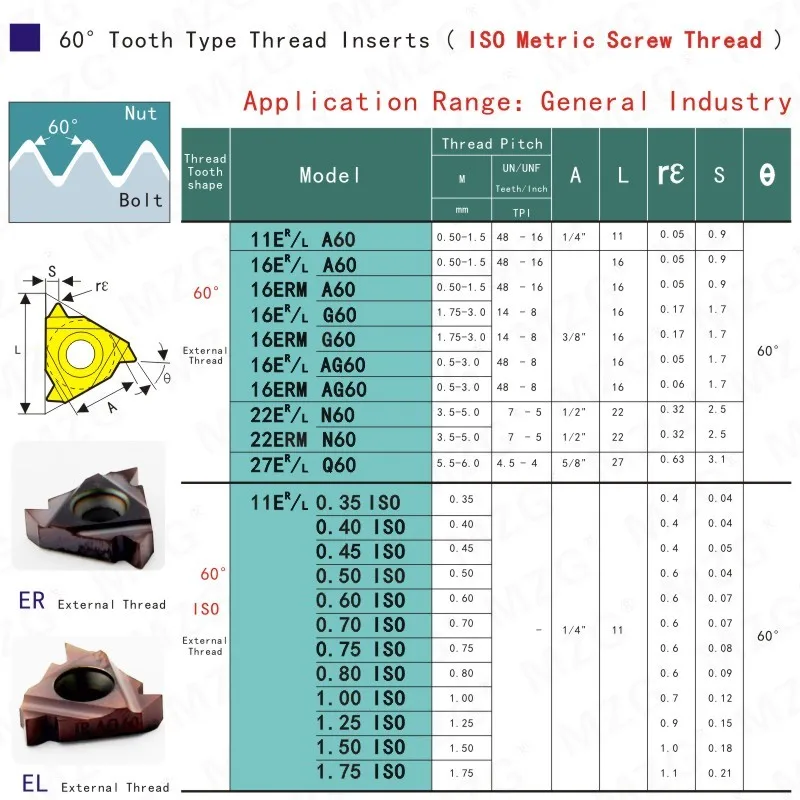

1.Maifix Carbide Insert Item Specific

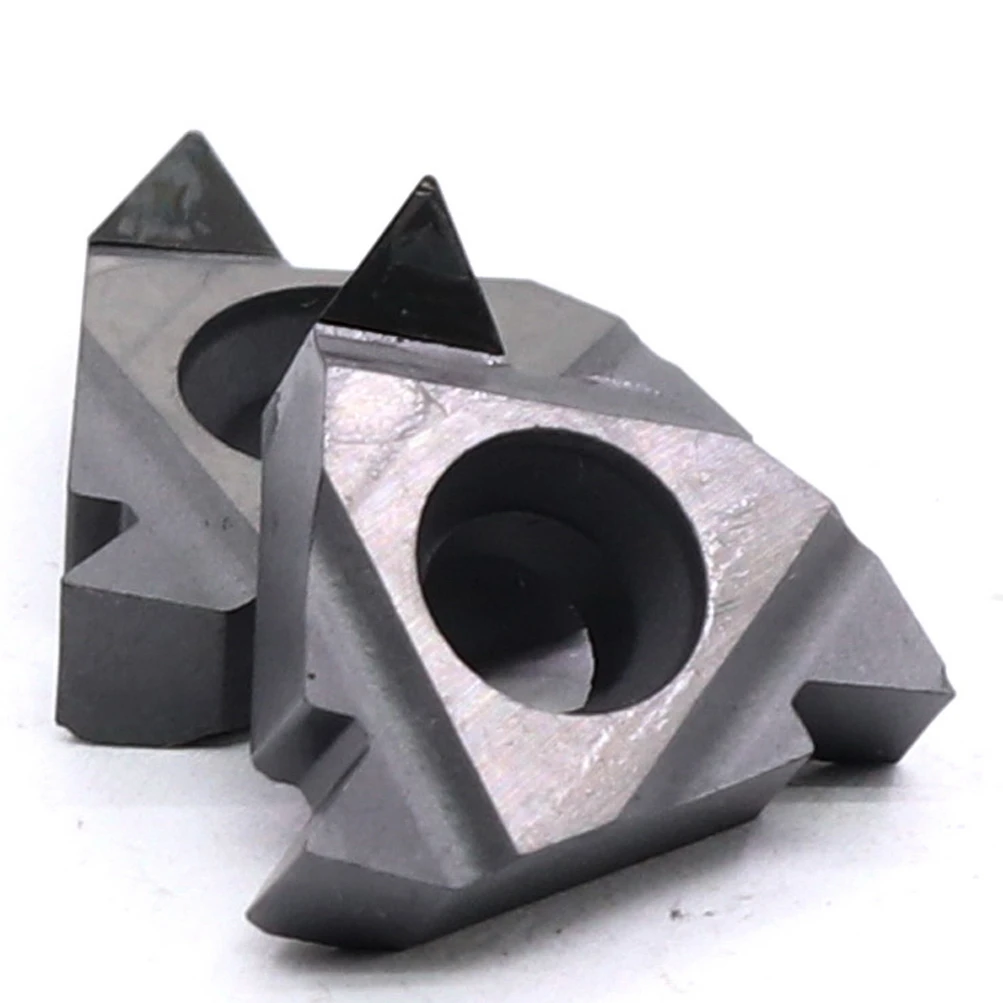

2.Maifix Carbide Insert Product Photo
3.Compatible Tools For Reference

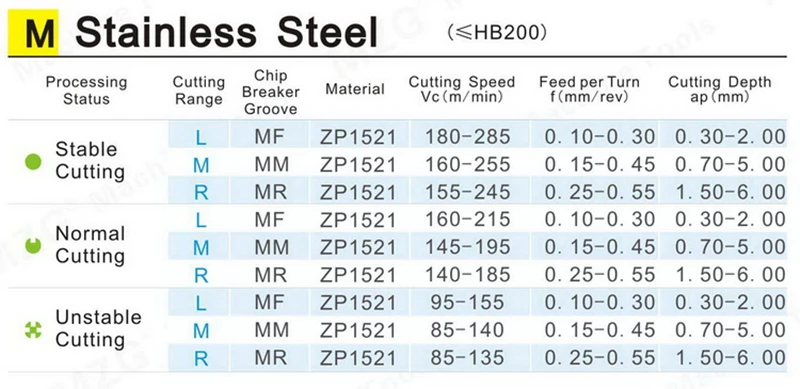

4.Insert Cutting Parameter
CNC Tool Insert Material Introduce
1) Coated Carbide(CVD)
Applicable from low to high speed cutting and from finishing to rough machining.Stable cutting is achieved due to the superior toughness and crack resistance.
Cutting times are reduced due to good chip control from effective chipbreakers.
Achieving superior processing efficiency in the field of a wide range of steel/casting Parts processing.
2) Coated Carbide(PVD)
Good for low to high speeds and finishing to heavy roughing cutting.Stable cutting with excellent toughness.
Smooth fine surface of PVD coated carbide provides good surface finish and high.
Achieved high reliability in the unstable processing field of stainless steel
3) Cermet
Excellent wear resistance enables high cutting speedsCermet maintains good surface finished due to the low affinity to workpiece material.
Excellent wear resistance enables high cutting speeds.
4) Carbide
Tough and Hard, good thermal conductivitySuitable for cutting non-ferrous metals and non-metals
Stable cutting at low cutting speeds, including milling operations
5)CBN
Superior wear resistance when cutting hard materialsSuitable for high speed cutting of cast iron and sintered steel
High thermal conductivity provide stable cutting
6)
PCD (Diamond Sinter)
Applicable for non-ferrous metals, non-metals turning milling and other various type of cutting .
Reduced edge build-up allows for high precision cutting.
Diversified applications for cutting of non-ferrous metals and non-metals.
Finished surface will be rainbow colored.(a mirror-like finished surface will not be obtained when single crystal diamond is used.)
Applicable for non-ferrous metals, non-metals turning milling and other various type of cutting .
Reduced edge build-up allows for high precision cutting.
Diversified applications for cutting of non-ferrous metals and non-metals.
Finished surface will be rainbow colored.(a mirror-like finished surface will not be obtained when single crystal diamond is used.)
Detailed Images
Main Features
Good for low to high speed cutting, provides good surface finish and high precision Cutting
Main Features
Excellent wear resistance enables high cutting speeds, cermet maintains good surface finish due to the low affinity to workpiece material, enable high cutting speeds
ZN60 : suitable for steel/cast finish processing
Main Feature
Tough and hard, good thermal conductivity, stable cutting at low speed, also for milling operation.
ZPW10, ZK10 : suitable for Cutting Aluminum Al non-ferrous metal processing
Main Features
CBN has superior wear resistance for hard materials such as chrome steel, sintered steel.
PCD inserts are suitable for non-ferrous metals turning milling and other types of cutting,
Reduce edge build-up allows for high precision cutting, the finish surface will be rainbow colored.
